How to add a bot to an iOS application using BliP Chat

Index:

• Prerequisites
• Setting up your chat
• Opening your conversation window
• Advanced features:
• Authentication
• Hide the window menu
• Window title
• Window title with type Dev authentication
• Specifying user data



With Blip Chat, you can place your chatbot inside your Android and iOS application in a super simple way.

On iOS, Blip Chat supports applications made in Swift and Objective-C. Installation is done through CocoaPod - if you don't already have CocoaPod, check out this guide teaching you how to configure it.

To use Blip Chat, simply add the reference in the Podfile file:

target 'MyApp' do

    ...

    use_frameworks!

    pod "BlipChat"

    ...

end



And finish installing the pod by running the command in your project directory:

$ pod install

Open * .xcworkspace with Xcode.

Note: DO NOT use * .xcodeproj. You will receive an error if you open a project file instead of the workspace.



Prerequisites

• To use Blip Chat on iOS, use iOS versions 10 or higher.
• On iOS, only the location permission needs to be informed. So, if your chatbot requests the user's location at any time, you should add a message to the user explaining why the location is needed. Add the Privacy - Location When In Use Usage Description key to your project's info.plist file.



Setting up your chat

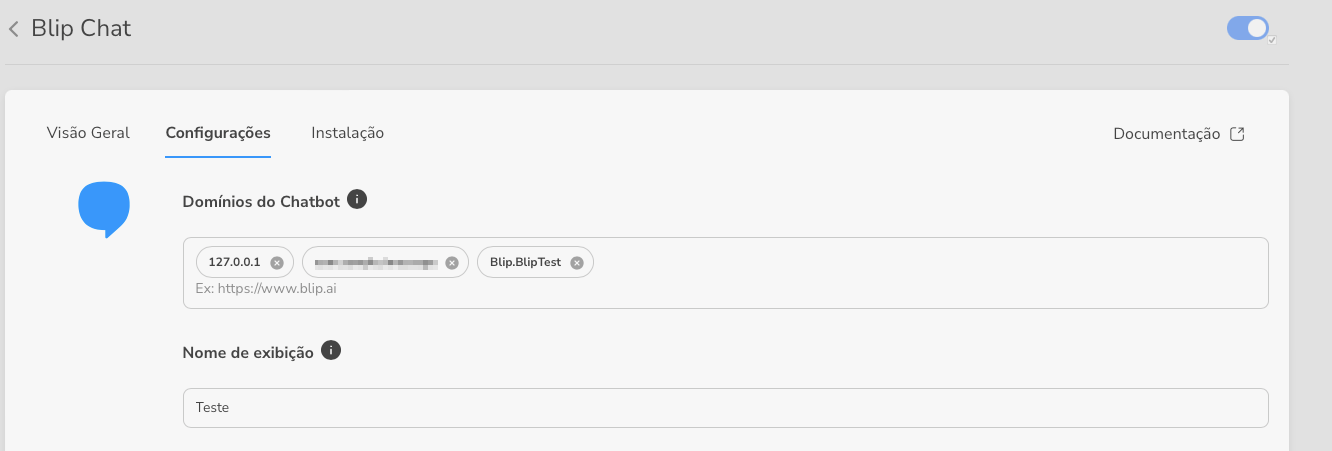

To include your chatbot in your application, you need to get your APIKey. If you have any questions, you can check out this post teaching you how to do this. You will also need to place your iOS App ID in the Chatbot Domains section of the Blip settings, to enable chat in your application.

To use location, set the Usage Description Key to Location Service in the info.plist file. Use the Privacy - Location When In Use Usage Description key and set up a message to ask the user for permission to use their location.



Opening your conversation window

1. Import the Blip SDK

Swift:

import BlipChat



Objective-C:

#import "BlipChat / BlipChat.h"

2. Use the BlipClient class and call the openBlipThread method to open a new thread.



Swift:

BlipClient.openBlipThread (myView: self, apiKey: "SUA-API-KEY", options: nil)



Objective-C:

[BlipClient openBlipThreadWithMyView: self appKey: (NSString *) @ "your-api-key" options: options error: nil];

Note: In Objective-C, the method name is openBlipThreadWithMyView.

3. Now imagine that you want, for example, to open a conversation between the user and his chatbot as soon as the app is opened (when the ViewController is loaded).

Swift:

import UIKit

import WebKit

import BlipChat




class ViewController: UIViewController {




    override func viewDidLoad() {

        super.viewDidLoad()

    }




    override func viewDidAppear(_ animated: Bool) {

        do {

            try BlipClient.openBlipThread(myView: self, appKey: "your-api-key", options: nil)

        } catch {

            print (error.localizedDescription)

        }

    }




    override func didReceiveMemoryWarning() {

        super.didReceiveMemoryWarning()

        // Dispose of any resources that can be recreated.

    }

}



Objective-C:

#import "ViewController.h"

#import "BlipChat/BlipChat.h"




@interface ViewController ()

@end




@implementation ViewController




- (void)viewDidAppear:(BOOL)animated {

    [super viewDidAppear: animated];

    [BlipClient openBlipThreadWithMyView:self appKey:@"your-app-key" options:nil error: nil];

}




- (void)didReceiveMemoryWarning {

    [super didReceiveMemoryWarning];

    // Dispose of any resources that can be recreated.

}

@end



Advanced features:

There are also some customization possibilities for your chat that can be configured through the BlipOptions object.



Authentication

It is possible to define the type of authentication of the user who will chat with your chatbot. There are two types of authentications possible:

• Guest: where each user is treated as a guest and there is no information about them;
• Dev: where the app developer is responsible for passing user information to Blip Chat. In this mode, the conversation history is available whenever the user logs in.

To better understand the possible authentication modes, take a look at this post that explains each type in detail.

To define the authentication type, use the AuthTypeProvider.AuthType enum in the BlipOptions authType property. When using Swift, the possible types are: .Guest and .Dev. When using Objective-C, the possible values ​​are: AuthTypeGuest and AuthTypeDev.



Swift:

let authConfig = AuthConfig(authType: .Dev, userIdentity: "user-identifier", userPassword: "user-password")

options = BlipOptions(authType: authConfig, account: nil)



Objective-C:

AuthConfig *authConfig = [[AuthConfig alloc] initWithAuthType:AuthTypeDev userIdentity:@"user-identifier" userPassword:@"user-password"];

options = [[BlipOptions alloc] initWithAuthType:authConfig account: nil];



Hide the window menu

The chat window with your chatbot has a menu in the upper right corner and can be hidden. To do this, just set the value for the hideMenu property inside the BlipOptions object.



Swift:

let options = BlipOptions()

options.hideMenu = false;



Objective-C:

BlipOptions *options = [[BlipOptions alloc] init];

options.hideMenu = NO;



Window title

On iOS, the Blip Chat window has a title that can be customized. To do this, set the windowTitle property value to the appropriate title. By default, this title is Blip Chat.



Swift:

let options = BlipOptions()

options.windowTitle = "Your title";



Objective-C:

BlipOptions *options = [[BlipOptions alloc] init];

options.windowTitle = @"Your title";



Window title with type Dev authentication

Swift:

import UIKit

import WebKit

import BlipChat




class ViewController: UIViewController {



    override func viewDidLoad() {

        super.viewDidLoad()

    }



    override func viewDidAppear(_ animated: Bool) {

        let authConfig = AuthConfig(authType: .Dev, userIdentity: "user-identifier", userPassword: "user-password")

        let account = Account(fullname: "user-name", email: "user-email")

        let options = BlipOptions(authType: authConfig, account: account)

        options.windowTitle = "Seu título"



        do {

                try BlipClient.openBlipThread(myView: self, appKey: "sua-app-key", options: options)

            } catch {

                    print (error.localizedDescription)

            }

    }



    override func didReceiveMemoryWarning() {

        super.didReceiveMemoryWarning()

        // Dispose of any resources that can be recreated.

    }

}



Objective-C:

#import "ViewController.h"

#import "BlipChat/BlipChat.h"







@interface ViewController ()

@end




@implementation ViewController




- (void)viewDidAppear:(BOOL)animated {

    [super viewDidAppear: animated];




    AuthConfig *authConfig = [[AuthConfig alloc] initWithAuthType:AuthTypeDev userIdentity:@"user-identifier" userPassword:@"user-password"];

    Account *account = [[Account alloc] initWithFullname:@"user-name"   email:@"user-email"];

    BlipOptions *options = [[BlipOptions alloc] initWithAuthType:authConfig account:account];

    options.windowTitle = @"Seu título";



    [BlipClient openBlipThreadWithMyView:self appKey: @"your-app-key" options:options error: nil];

}




- (void)didReceiveMemoryWarning {

    [super didReceiveMemoryWarning];

    // Dispose of any resources that can be recreated.

}




@end



Specifying user data

Blip Chat allows some user data, such as fullname, email and others, to be specified when uploading. To see all possible properties, access the Lime Protocol documentation.

To define the information, create an Account object and pass it as a parameter to BlipOptions.



Swift:

let authConfig = AuthConfig(authType: .Dev, userIdentity: "user-identifier", userPassword: "user-password")

let account = Account(fullname: "user-name", email: "user-email")

options = BlipOptions(authType: authConfig, account: account)



Objective-C:

AuthConfig *authConfig = [[AuthConfig alloc] initWithAuthType:AuthTypeDev userIdentity:@"user-identifier" userPassword:@"user-password"];

Account *account = [[Account alloc] initWithFullname:@"user-name" email:@"user-email"];

options = [[BlipOptions alloc] initWithAuthType:authConfig account: account];

Examples

After getting to know a little more about the features of Blip Chat, let's make an example a little more complete. Let's say you wanted to open a conversation between the user and your chatbot with the Dev authentication type, providing the name, email and password information, and hide the chat window menu.



Swift:

import BlipChat




class ViewController: UIViewController {



   @IBAction func openThread(_ sender: Any) {

       let options = BlipOptions(authType: .Dev,

                                 userIdentifier: "IDENTIFICADOR-DO-USUARIO",

                                 userPassword: "SENHA-DO-USUARIO",

                                 userName: "NOME-DO-USUARIO",

                                 userEmail: "EMAIL-DO-USUARIO")

       options.windowTitle = "Meu App iOS" // Define o titulo da janela

       options.hideMenu = true // Esconde o menu da janela

       do {

           try BlipClient.openBlipThread(myView: self, apiKey: "SUA-API-KEY", options: options)

       } catch {

           print (error.localizedDescription)

       }

   }

}



Objective-C:

#import "ViewController.h"

#import "BlipChat/BlipChat.h"







@interface ViewController ()

@end




@implementation ViewController




- (void)viewDidAppear:(BOOL)animated {

    [super viewDidAppear: animated];

}




- (IBAction)openThread:(id)sender {

    BlipOptions *options = [BlipOptions alloc];

    if ([sender tag] == 0) {

        options = [options init] ;

    } else if([sender tag] == 1) {

        AuthConfig *authConfig = [[AuthConfig alloc] initWithAuthType:AuthTypeDev userIdentity:@"ObjcTest1" userPassword:@"123456"];

        Account *account = [[Account alloc] initWithFullname:@"iosName1" email:@"iosEmail1@email.com"];

        account.encryptMessageContent = TRUE;

        options = [options initWithAuthType:authConfig account:account];

    } else if([sender tag] == 2) {

        AuthConfig *authConfig = [[AuthConfig alloc] initWithAuthType:AuthTypeDev userIdentity:@"ObjcTest2" userPassword:@"123456"];

        Account *account = [[Account alloc] initWithFullname:@"iosName2" email:@"iosEmail2@email.com"];

        account.encryptMessageContent = TRUE;

        options = [options initWithAuthType:authConfig account:account];

    } else if([sender tag] == 3) {

        AuthConfig *authConfig = [[AuthConfig alloc] initWithAuthType:AuthTypeDev userIdentity:@"ObjcTest3" userPassword:@"123456"];

        Account *account = [[Account alloc] initWithFullname:@"iosName3" email:@"iosEmail3@email.com"];

        options = [options initWithAuthType:authConfig account:account];

    }

    options.windowTitle = @"Objective C";

    [BlipClient openBlipThreadWithMyView:self appKey:@"YOUR-APP-KEY"  options:options error:nil];

}




- (void)didReceiveMemoryWarning {

    [super didReceiveMemoryWarning];

}




@end







For more information, access the discussion on the subject in our community or the videos on our channel. 😃
