Index:
- Context Variables
- User Variables
- Configuration Variables
- System variables
- Blip Desk Service Variables
- Sensitive Variables
When setting up your application in Builder, it may be necessary to store inputs in variables. This is essential for building conditional flows, or for simply storing / retrieving inputs throughout user interaction.
At any point in the conversation flow, you can retrieve the input of any previously defined variable. In contrast, it is only possible to store inputs in a variable in specific Builder locations, such as:
- User data entry (in the control and content blocks);
- Results of API requests;
- Result of executing a script;
- Global configuration variables screen.
A builder variable is formed exclusively by a sequence of alphanumeric characters (uppercase or lowercase), and special characters are not allowed. All variables are case-sensitive. There are four types of variables in Builder: Context variables, user variables, configuration variables and system variables. Check out each one:
Context Variables
In a conversation between two or more people, we unconsciously build a context. For example: in a casual encounter between two friends, Mary and John, one of them starts talking about his dog.
Upon meeting John, Mary says:
- Hi John, how are you?
John then replies:
- Hello Mary, everything is great. Today I'm radiant, I just got a cute puppy.
Right after the first contact, Mary starts asking questions about the John’s puppy:
- Cool! What is his name?
John promptly replies:
- His name is Toby.
Notice that, in Maria's speech, there is no explicit connection between the phrase “what is his name?” and John's dog. The connection between the possessive pronoun “his” and John's dog is only noticeable due to the context of the conversation - the two friends know that, at first, they were talking about John's dog.
The context variables allow the storage / retrieval of inputs related to the subjects discussed between the user and the bot. It is possible to store inputs in a context variable through the user input and HTTP contents, in addition to HTTP request actions, script execution, definition of variables and processing of commands.
To retrieve the inputs of a context variable, just use the following pattern at any point in the conversation flow:
{{context.VariableName}}
Or just
{{variableName}}
Where:
variableName represents the name of the desired context variable.
User Variables
Every user who talks to a bot built in Blip has an account (Contact). Contact is a structure that stores attributes (information) of the user depending on the channel (messaging application) that he uses.
For example: any Facebook Messenger user who contacts your bot will already have basic and public information, such as name and URL of the profile picture defined in your account.
User variables make it possible to use any information defined in the users' account in a simple way. For full details on how Blip Contact information is stored, check the directory extension at this link (https://docs.blip.ai/#directory).
To retrieve the input of a user variable, just use the following pattern at any point in the conversation flow:
{{contact.VariableName}}
Where:
variableName represents the name of the desired contact variable.
If you want to send a greeting message with the name of the user who is interacting with your bot, use the {{contact.name}} variable for this. For example:
“Hello {{contact.name}}, welcome!”
The table below presents all contact variables available in Blip and a description of what they represent. The inputs and availability of the data depends on the user's channel.
|
Name of Variables |
Description |
|
name |
The name of the contact |
|
address |
The contact's address |
|
city |
The city of contact. |
|
|
The contact's email. |
|
source |
The channel name of the contact. |
|
phoneNumber |
The contact's phone number. |
|
photoUri |
The URI of the contact's public photo. |
|
cellPhoneNumber |
The contact's cell phone. |
|
gender |
The sex of the contact. |
|
timezone |
The GMT contact timezone. |
|
culture |
The user's culture information (in IETF format). |
|
extras |
A generic JSON to store pairs of strings (key and value). |
|
identity |
The contact's identity in the name @ domain format. Mandatory ownership |
|
group |
Indicates the name of the group to which the user belongs |
* Note: Some channels do not provide any contact information other than their identifier, defined by the {{contact.identity}} variable.
Configuration Variables
Configuration variables make it possible to store general-purpose configuration inputs.
Imagine, for example, that the conversation flow performs 10 HTTP request actions for the same endpoint API https://myapi.com.
In this scenario, it is possible to create, for example, an endpoint configuration variable with the input https://myapi.com and reuse this variable in all 10 actions of the flow. If your API address changes, just change the input of the variable.
To create or change the input of any configuration variable, click on the Builder settings, expand the option Configuration variables and add the name and input of the variable.
To recover the input of a configuration variable, just use the following pattern, anywhere in the conversation flow:
{{config.VariableName}}
Where:
variableName represents the name of the desired configuration variable.
System variables
The system variables provide a lot of flexibility for those who are developing the bot. Through them, it is possible to know information such as calendar inputs (time and date), the user's last entry, in addition to unique identifiers, numbers and random strings.
To recover the input of a system variable, just use, at any point in the conversation flow, one of the following patterns:
{{variableName}}
Where:
variableName represents the name of the desired configuration variable.
If you want to send a random number to a customer who is interacting with your bot, use the {{random.integer}} variable for this. For example:
“Your random number is: {{random.integer}}!”
The sheet below presents all the system variables available in Blip, in addition to a description of what they represent.
|
Variable Name |
Description |
|
application.domain |
Domain on which the bot application is running (usually 'msging.net') |
|
application.identifier |
Unique identifier of the bot application |
|
application.identity |
Bot application identity (same as 'identifier @ domain') |
|
application.instance |
The bot application node instance |
|
application.node |
The bot application node (same as 'identifier @ domain / instance') |
|
calendar.datetime |
Current date and time GMT-0 (MM / dd / yy HH: mm: ss). |
|
calendar.date |
Current date GMT-0 (in yyyy-MM-dd format). |
|
calendar.day |
Value representing the day in the current month. |
|
calendar.month |
Value representing the current month. |
|
calendar.year |
Value representing the current year. |
|
calendar.time |
Current time GMT-0 (in HH format: mm). |
|
calendar.hour |
Value representing the current time. |
|
calendar.minute |
Value representing the current minute. |
|
calendar.second |
Value representing the second current. |
|
calendar.unixTime |
Current date in unix timestamp format |
|
calendar.unixTimeMilliseconds |
Current date in unix timestamp format (milliseconds). |
|
calendar.dayOfWeek |
Value that represents the day of the current week (where 0 is Sunday and 6 is Saturday). |
|
calendar.tomorrow.datetime |
Tomorrow's date and current time GMT-0 |
|
calendar.tomorrow.date |
Tomorrow's date GMT-0 |
|
calendar.tomorrow.day |
Value representing tomorrow in the current month. |
|
calendar.tomorrow.month |
Value representing the month of tomorrow's date |
|
calendar.tomorrow.year |
Value representing the year of tomorrow's date |
|
calendar.tomorrow.time |
Current time on tomorrow's GMT-0 date. |
|
calendar.tomorrow.hour |
Value representing the current time on tomorrow's date |
|
calendar.tomorrow.minute |
Value representing the current minute on tomorrow's date |
|
calendar.tomorrow.second |
Value that represents the second current on tomorrow's date. |
|
calendar.tomorrow.unixTimeMiliseconds
|
Tomorrow's date in unix timestamp format (milliseconds) |
|
calendar.tomorrow.unixTime |
Tomorrow's date in unix timestamp format |
|
calendar.tomorrow.dayOfWeek |
Value representing the day of the week of tomorrow's date (where 0 is Sunday and 6 is). |
|
calendar.yesterday.datetime |
Yesterday's date and current time GMT-0 |
|
calendar.yesterday.date |
Yesterday GMT-0 |
|
calendar.yesterday.day |
Value representing yesterday in the current month |
|
calendar.yesterday.month |
Value representing the month of yesterday's date |
|
calendar.yesterday.year |
Value representing the year of yesterday's date |
|
calendar.yesterday.time |
Current time on yesterday GMT-0 |
|
calendar.yesterday.hour |
Value representing the current time on yesterday's date |
|
calendar.yesterday.minute |
Value representing the current minute on yesterday's date |
|
calendar.yesterday.second |
Value representing the second current on yesterday's date |
|
calendar.yesterday.unixTime |
Yesterday's date in unix timestamp format |
|
calendar.yesterday.unixTimeMiliseconds |
Yesterday's date in unix timestamp format (milliseconds) |
|
calendar.yesterday.dayOfWeek |
Value representing the day of the week from yesterday's date (where 0 is Sunday and 6 is Saturday) |
|
input.content |
Content of the message sent by the user |
|
input.entity.?.id |
Identifier of the recognized entity (where? Should be replaced by the name of the entity) |
|
input.entity.?.name |
Name of the recognized entity (where? Should be replaced by the name of the entity) |
|
input.entity.?.value |
Value of the recognized entity (where? Should be replaced by the name of the entity) |
|
input.entity.?.name |
Name of the recognized entity (where? Should be replaced by the name of the entity) |
|
input.intent.id |
Recognized intention identifier |
|
input.intent.name |
Recognized intention name |
|
input.intent.score |
Reliability tied to recognized intent |
|
input.intent.answer |
One of the responses linked to the recognized intention |
|
input.length |
Number of contents in the message sent by the user |
|
input.type |
Type of message sent by the user |
|
input.message |
Message envelope received by the bot |
|
input.message.from |
Originator node of the received message |
|
input.message.fromidentity |
Identity of the originator of the received message |
|
input.message.id |
Received message id |
|
input.message.pp |
Node of the originator of the received message, in case of delegated messages |
|
input.message.ppidentity |
Identity of the originator of the message received, in the case of delegated messages |
|
input.message.to |
Receiver node of the received message (usually the bot application node) |
|
input.message.toidentity |
Identity of the recipient of the received message (usually the identity of the bot application)
|
|
random.guid |
Unique alphanumeric identifier |
|
random.string |
Random character set |
|
random.integer |
Random integer |
|
calendar.plus/minus 12345 (milisseconds seconds minutes hours days weeks months years dayOfWeek) |
Available date manipulation functions |
|
state.id |
Current block id in flow |
|
state.name |
Name of the current block in the stream |
|
state.previous.id |
Previous block id in the stream
|
|
state.previous.name |
Previous block name in the stream |
|
tunnel.destination |
Tunnel recipient, which is usually the identity of the bot application. Available only for tunnel messages (forwarded by a router, for example). |
|
tunnel.identity |
Tunnel identity. Available only for tunnel messages (forwarded by a router, for example). |
|
tunnel.originator |
Tunnel originator node, which is the customer's identifier in the tunnel owner. On a router, it is the customer's original identifier. Available only for tunnel messages (forwarded by a router, for example). |
|
tunnel.owner |
Identity of the tunnel owner. On a router, it is the identity of the router's application. Available only for tunnel messages (forwarded by a router, for example). |
Note: System variables are read-only
Blip Desk Service Variables
The Blip Desk attendance variables can be used in ready-made responses to present information inherent to the attendant. Therefore, it is possible to know the attendant's full name, e-mail, identity and telephone number. Find out how to apply these variables in the article using variables in the Blip Desk ready responses.
|
Variable Name |
Description |
|
agent.identity |
The agent's identity in the name @ domain format. |
|
agent.fullName |
The name of the agent. |
|
agent.email |
The agent's email. |
|
agent.phoneNumber |
The agent's phone. |
|
agent.firstName
|
Only the agent's first name
|
Sensitive Variables
Sensitive variables make it possible to store secret values for use in Builder.
Imagine, for example, that in the conversation flow it is necessary to make an HTTP request to an API in which it is necessary to send an access token.
In this scenario, it is possible to create, for example, a sensitive variable with the name Token and the desired token value and reuse this variable in flow requests.
After creating the variable, its values are suppressed for greater data security. If you just want to change the value, enter it again in the designated field. If you want to change the key name, adjust the name and also re-enter the desired value.

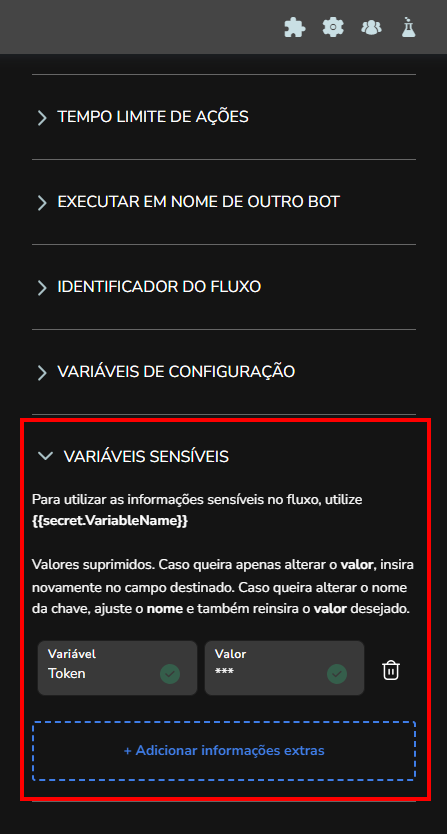

To create or change the value of any sensitive variable, click on the Builder settings, expand the Sensitive variables option and add the name and value of the variable (as shown in the image below).
To use sensitive information in the flow, use: {{secret.nomeVariavel }}
Where:
variablename represents the name of the desired sensitive variable.
For more information, visit the discussion on the subject in our community or the videos on our channel. 😊
